Bike

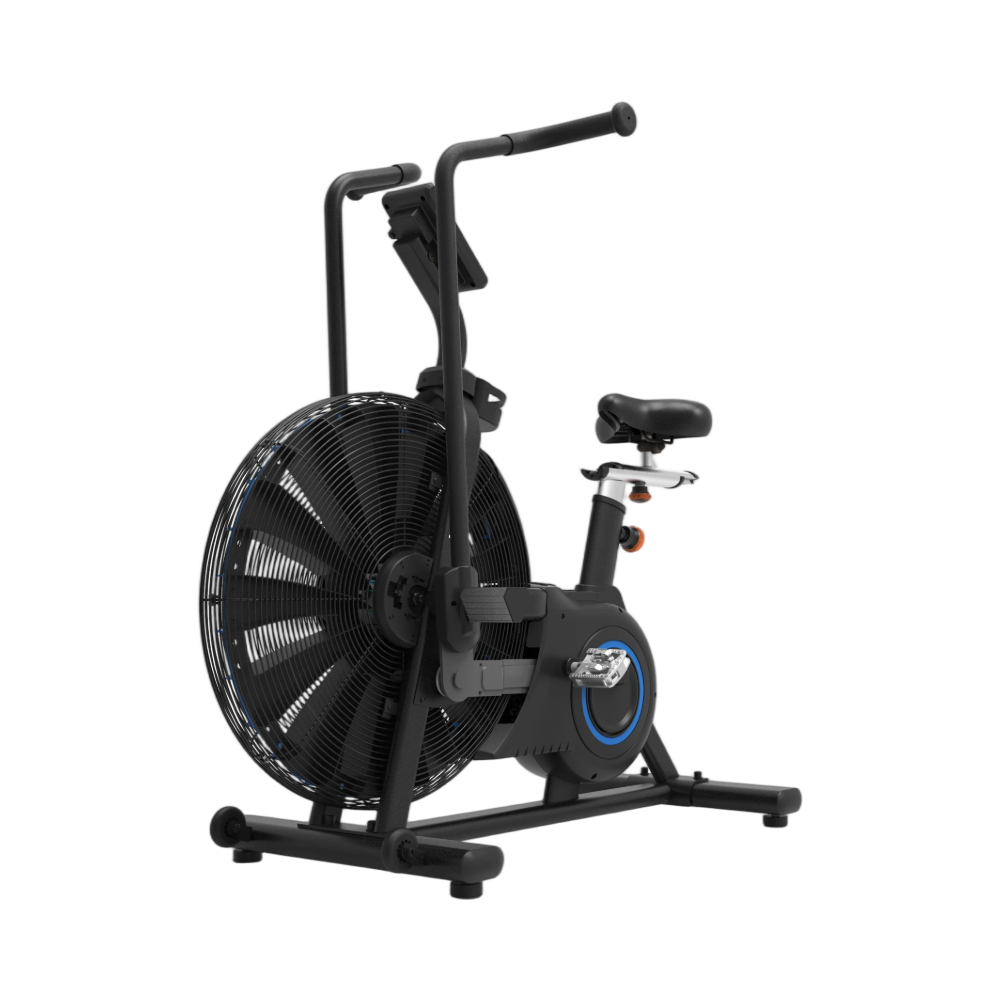

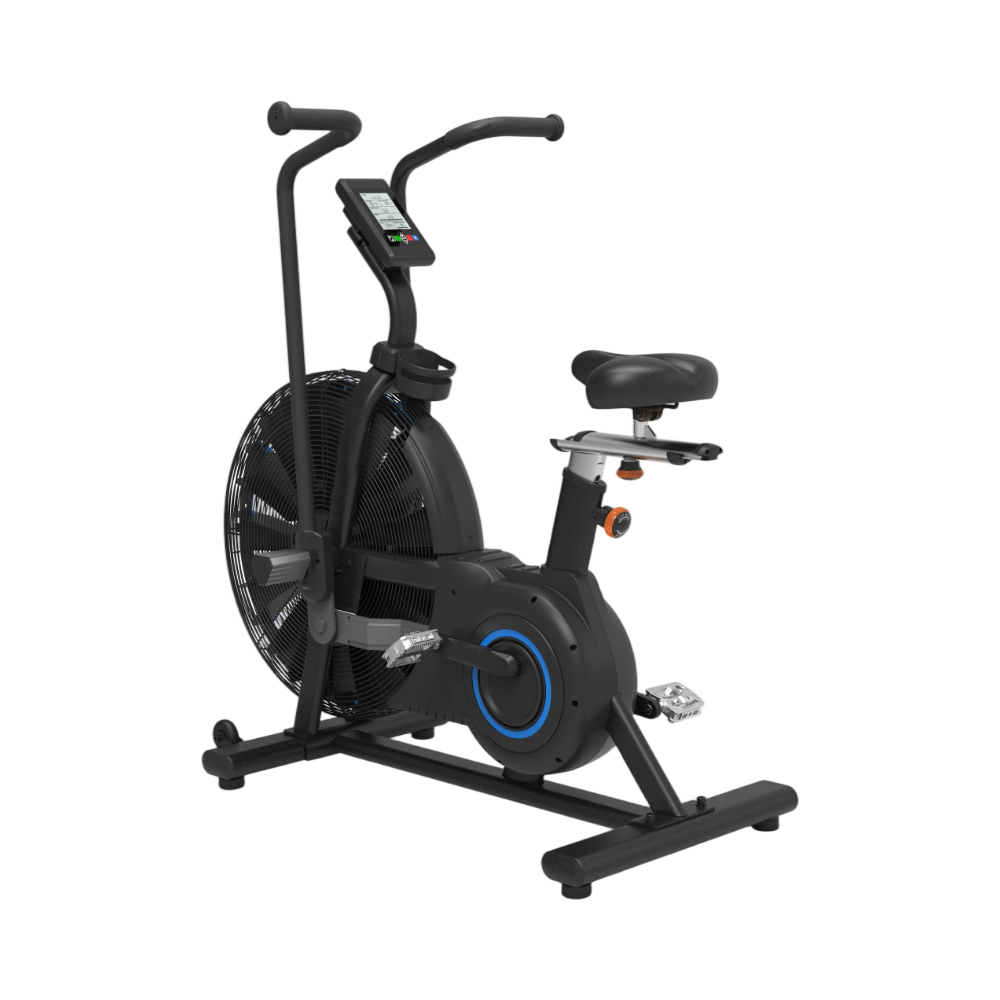

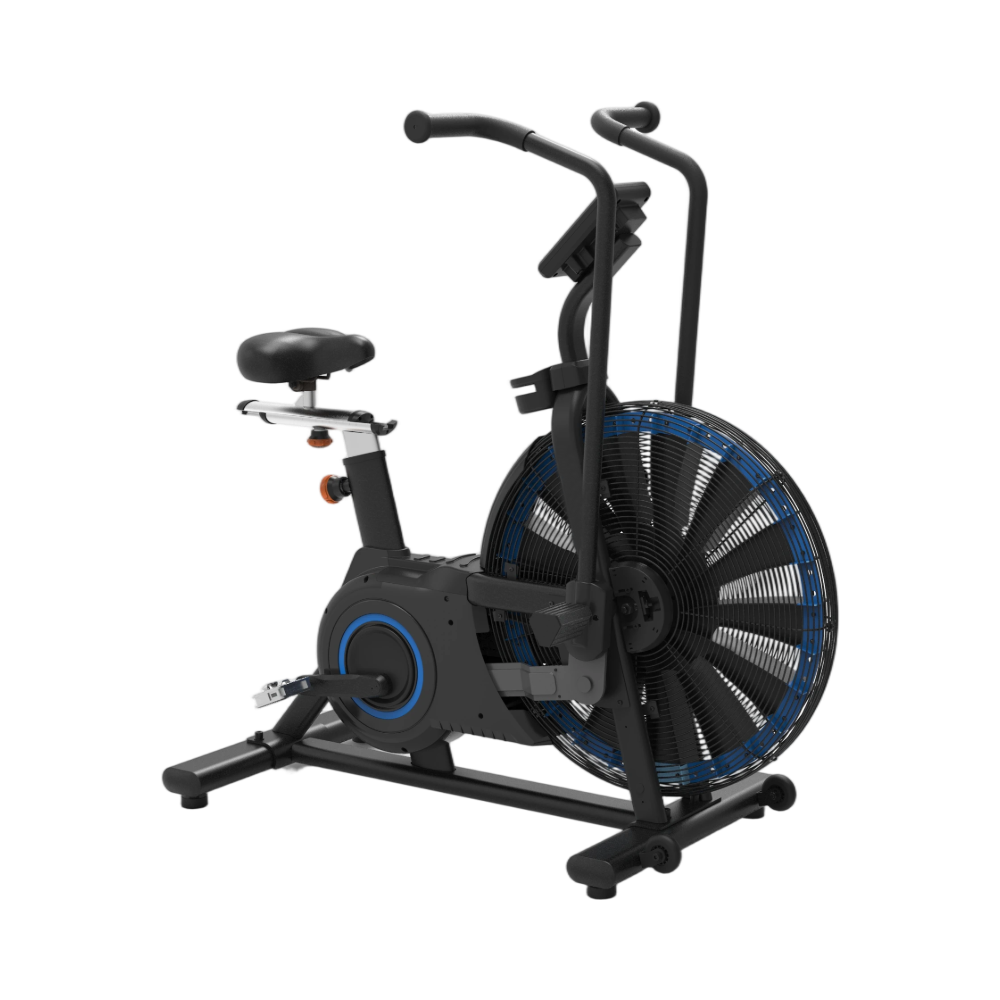

Air Bike - HB5
User-Controlled Air Resistance System
The resistance is generated by a fan driven by the user's pedaling speed and simultaneous arm movement through the moving handles, allowing users to fully determine their own workout intensity and resistance level.
Advanced Integrated Fan Design
Features 26 ABS blades molded into a single piece, creating a more stabilized and quieter operation compared to traditional steel blades during use.
Smart Data Connectivity
Workout data can be synchronized to smart devices via Bluetooth or ANT+ technology, enabling users to track performance through third-party applications for more scientific training management and personalized workout planning.
Durable Low-Maintenance Construction
Critical components including the seat support and pedals are constructed from corrosion-resistant aluminum alloy, while a maintenance-free belt drive system replaces traditional chains, ensuring a smooth ride without regular upkeep or additional costs.
| Specification | Details |
| Model | HB5 |
| Resistance | Air Resistance |
| Drive Model | Belt Drive |
| Crank | Oversize |
| Pedals | Double Faced Aluminum Alloy |
| Footholds | Aluminum |
| Pedals & Handle Bars | Synchronized Motion |
| Fan Size | 26 inches |
| Fan Blades | 26 ABS Curved blades |
| Maximum User Weight | 150kg / 330lbs |
| Console Display | 5"LCD Screen |
| Console Readouts | Time, Speed/Average Speed, Calories/Average Calories, Distance, RPM/Average RPM, Watt/Average Watt, Heart Rate/Average Heart Rate |
| Programs | 3 target programs (Time, Distance, Calories), 3 Heart Rate Programs (65%,75%,85%), 4 Interval Programs (3 time interval and 1 distance interval) |
| Heart Rate Monitor | Bluetooth, ANT+ |
| Cup Holder | Yes |
| Power Requirements | 4 C Cell batteries |
| Net Weight | 63.3kg/139.6lbs |
| Gross Weight | 79.8kg/175.9lbs |
| Product Dimension | 1308 x 712 x 1349(mm)/51.5" x 28.0" x 53.1" |
| Packing Size | 1355 x 400 x 905(mm)/52.6" x 15.7" x 35.6" |
